SYNTHITE®AC-29-7S，AC-29-75，AB-700

AC - 29-7 s

AC - 29-7 s insulating paint resistance to high temperature of 180 ° C, air drying, insulating paint, wide range of USES.

Colors: amber

The CPS viscosity: 200-200

Flash: 54 degrees

Special thinner: T - 200 - X

Withstand voltage: dry wet 1200 v / 2500 v/mill mill.

Heat resistance level: H level

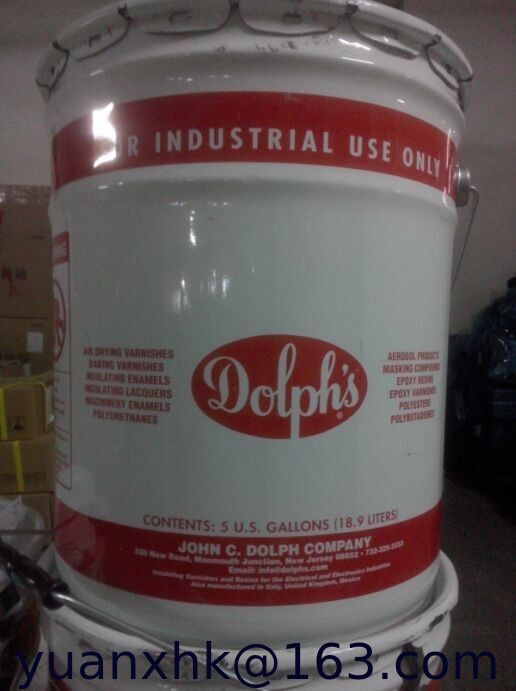

Packing: 5 gallons barrel. 55 gallon barrel

Origin: Europe, the United States.

Product use: apply to electronic, PCB, circuit boards, electrical appliances, all kinds of coils, motors, transformers, resistors, rotor, etc.

Feng Paul rudolph insulating varnish AC - 29-75

Insulating varnish AC - 29-75 high temperature of 180 ° C, air drying, insulating paint, wide range of USES.

Colors: amber

The CPS viscosity: 200-200

Flash: 54 degrees

Withstand voltage: 3000 v/mill

Heat resistance level: H level

Packing: 5 gallons barrel. 55 gallon barrel

Origin: Europe, the United States.

Product use: apply to electronic, PCB, circuit boards, electrical appliances, all kinds of coils, motors, transformers, resistors, rotor, etc.

ER - 41 red insulating varnish Is a special high temperature resistant insulating paint, this red from dry to rebuild and provide excellent clouding in the process of production capacity, high wear resistance, chemical resistance, moistureproof and anticorrosive ability and adhesive properties.

Color: red.

The CPS viscosity: 200-200

Flash: 81 ° F

Heat resistance level: F - 155 degrees

Packing: 5 gallons barrel is about 18.9 L

Origin: the United States.

Product use: apply to all kinds of electrical appliances artifacts, motors, transformers, circuit boards, choke and etc

SYNTHITE ® EB - 41 black air drying urethane varnish

The product description

EB - 41 is a high temperature; Fast curing, the air is dry, polyurethane varnish, it is a good insulating varnish

Coating of all electrical and electronic components. Synthite ® EB - 41 and aerosols, Doyle's - spray ® EB - 41.

Features:

Fast drying, quick drying, high temperature resistance, good chemical resistance

To rebuild and make good shielding. Excellent resistance to oil and moisture, wear resistance, excellent adhesion

Typical application:

Field coil, coil, switch base, molded plastic, electrical connectors, collecting ring, the fuse tube

Electromagnetic coil, axis controller, printed circuit boards, commutator, porcelain, solder joints, the stator coil end.

Typical performance

physical

Color/black appearance

Density @ 77 ° F (25 oc), 8.5 -- 9 pounds per gallon

Viscosity @ 77 of brookfield viscometer (25 oc) CPS. 200-400

Flash point of 81 (27 oc appearance)

Treatment time "of 77 (25 oc), minimum non-viscous

Set the touch

Film thickness, ml/side, ASTM d - 115-1.5-2.5

Thinner (solvent) t - 200 - x

VOC content, ASTM D 6053, pounds per gallon

Organic aerosols (calculate) four point four 47%

JCD/DS/eb41.09 03

Dielectric strength, ASTM D 115 v 1800 v/mm

1200 v wet

Chemical resistance

Acid and sulfuric acid (10%)

1% alkali (sodium hydroxide)

Resistant to salt water optimal

Oil, by ASTM d - 115

No effect on the corrosion of copper

Application guidelines

Stir the EB - 41 mixed pigment because there are some precipitate. Besmear to brush, dip, or

Spraying. EB - 41 as providing many applications or can be thinned with t - 200 - x.

Coating application, usually thin 25% - 20.

The thickness of the film should be kept in less than 2 ml of each side of each application. This allows the complete

The release of the solvent and the appropriate treatment. EB - 41 to air dry, can be dealt with in 30 minutes. For the best

Chemical resistance and abrasion resistance, can make the air dry for at least 24 hours.

Pay special attention to matters

In EB - 41 is to use spray method, should pay attention to keep the spraying area clean. Filters and other

The region of the waste should be soaked in water, and placed in a safe container.
