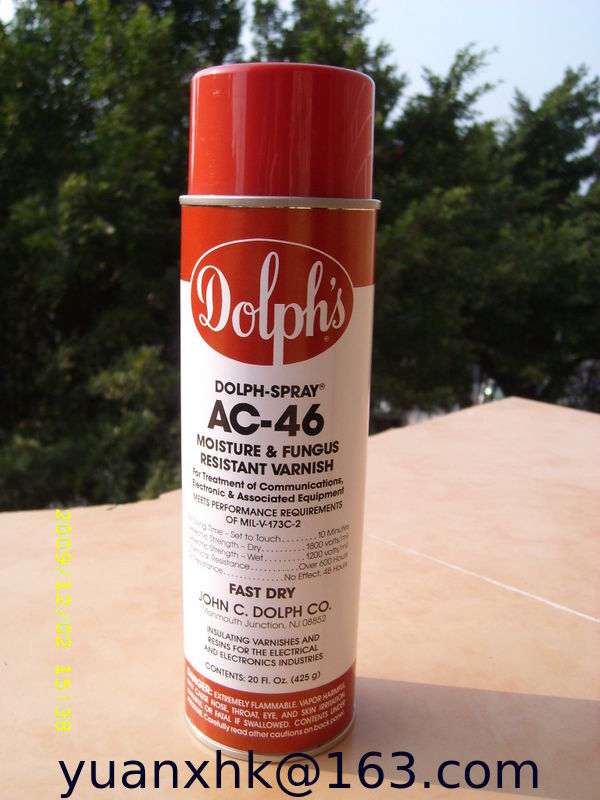

DOLPH-SPRAY@AC-46 UV insulating paint

DOLPH-SPRAY@AC-46

AC - 46 is a kind of high temperature resistant, fast curing, dry gas, moistureproof antibacterial polyurethane anti-corrosion paint, suitable for a variety of electronic electrical components of the conformal coating.

Characteristics of advantages:

1, anti fungi

2, fast curing 30 minutes to operation work,

3, easy to use - leaching, brushing and spraying methods

4, UL certification of heat-resistant level of 155 degrees F

5, excellent resistance to chemical attack - resistance parts except the fat liquor.

6, moistureproof, prevent oil - excellent PCB coating

7, excellent abrasion resistance, adhesive properties.

8, excellent PCB coating

Typical application:

Excitation coil, PCB, circuit board, control coil, electrical connectors, confluence ring and spiral coil, ballast, ceramic pieces, transformer, bus, and the connection box, cable, molding bakelite,

Physical properties:

Colour: deep amber color

Density: 0.9 to 0.98

Thinner: T - 200

Film thickness: 1-1.5 mil concentrate

Table dry film drying time: 10 minutes, 60 minutes don't stick.

Flash: 40 degrees

Excellent resistance to water: -

Acid sulfuric acid (10%), excellent

Alkali resistance (1% sodium hydroxide) - excellent

Resistant to salt water: -- -- -- -- --

Oil resistance, ASTM D - 115 -- -- -- -- -- -- -- -- by

Black music bacterium resistance -- -- -- -- -- -- -- -- -- --

Yellow music bacterium resistance -- -- -- -- -- -- -- --

Rope green resistance bacteria -- -- -- -- -- -- -- --

Wood toxin resistance -- -- -- -- -- -- --

Storage/shelf life

When stored at 70 ℉ (21 ℃) and the temperature in the sealed container, a year after the shelf life is shipped from the factory.

1, store in a dry place, at a temperature of 70 ℉ (21 ℃) and the following;

2, avoid direct sunlight and heat source.
